Synthetic Trajectory Generation with Nomad

This notebook demonstrates how to generate realistic synthetic human mobility trajectories.

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import time
from pathlib import Path
from joblib import Parallel, delayed

from nomad.city_gen import City
from nomad.traj_gen import Agent, Population
from nomad.stop_detection.viz import plot_pings, plot_time_barcode

city = City.from_geopackage('garden-city.gpkg')
city._build_hub_network(hub_size=16)
city.compute_gravity(exponent=2.0)
city.compute_shortest_paths(callable_only=True)

print(f"City: {city.name}")
print(f"Dimensions: {city.dimensions}")
print(f"Buildings: {len(city.buildings_gdf)}")

City: Garden City
Dimensions: (22, 22)
Buildings: 106

Part 1: Effect of Sampling Parameters on Sparsity

Generate 3 agents with 2-day trajectories, varying beta_duration and beta_start to show their effect on sparsity (q = observed points / ground truth points).

population = Population(city)
population.generate_agents(N=3, seed=42, name_count=2)

# Vary beta_duration and beta_start to target different sparsity levels
sampling_params = [
    {'beta_ping': 5, 'beta_start': 100, 'beta_durations': 60},
    {'beta_ping': 5, 'beta_start': 250, 'beta_durations': 150},
    {'beta_ping': 5, 'beta_start': 400, 'beta_durations': 240}
]

# Generate 2-day trajectories for quick visualization
for i, (agent_id, agent) in enumerate(population.roster.items()):
    agent.generate_trajectory(
        datetime=pd.Timestamp("2024-01-01T07:00-04:00"),
        end_time=pd.Timestamp("2024-01-03T07:00-04:00"),
        seed=i
    )

    agent.sample_trajectory(
        **sampling_params[i],
        replace_sparse_traj=True,
        seed=i
    )

    q = len(agent.sparse_traj) / len(agent.trajectory)
    print(f"Agent {i}: q={q:.3f}, beta_start={sampling_params[i]['beta_start']}, "
          f"beta_dur={sampling_params[i]['beta_durations']}")

Agent 0: q=0.051, beta_start=100, beta_dur=60
Agent 1: q=0.031, beta_start=250, beta_dur=150
Agent 2: q=0.135, beta_start=400, beta_dur=240

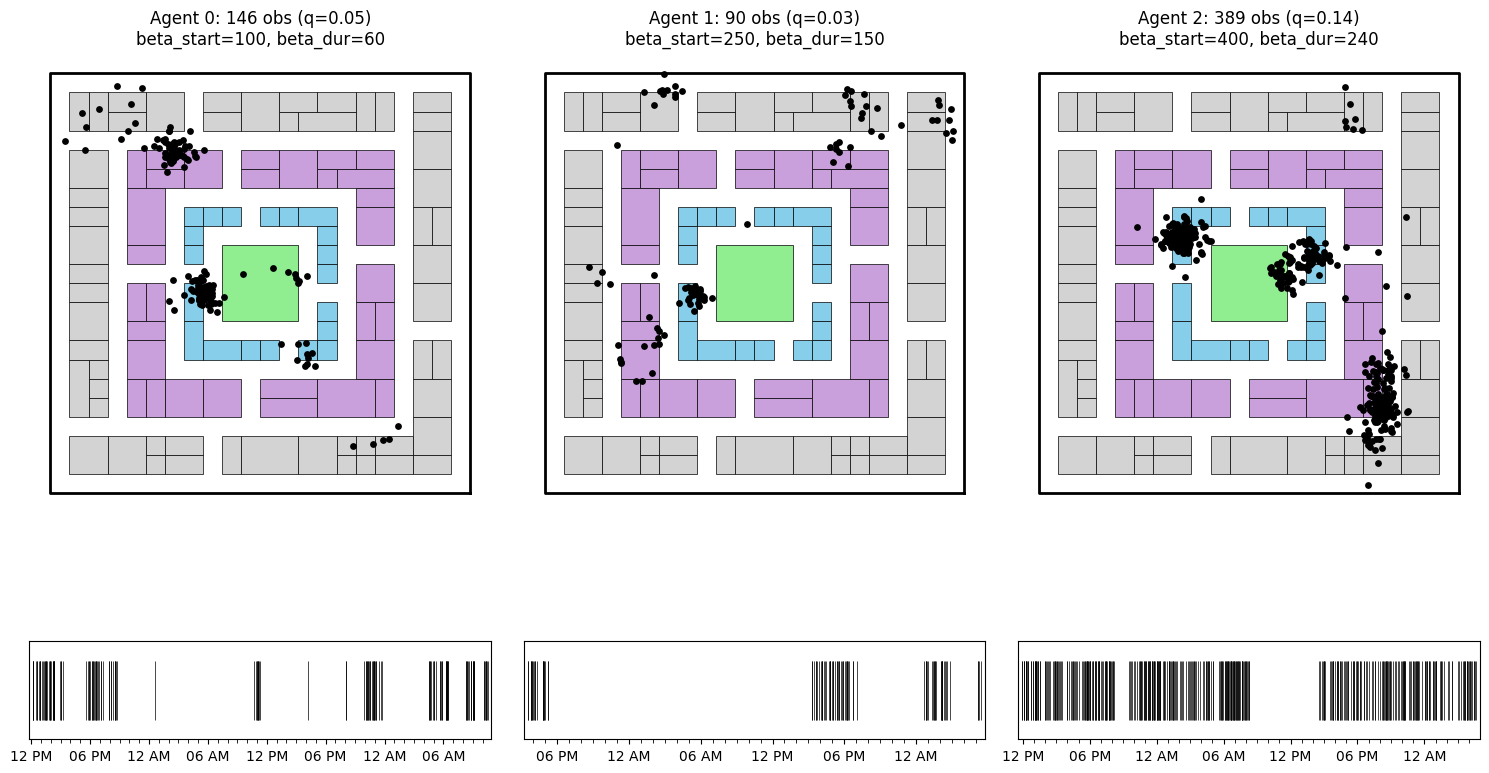

fig, axes = plt.subplots(2, 3, figsize=(15, 10),
                         gridspec_kw={'height_ratios': [10, 1]})

for i, (agent_id, agent) in enumerate(population.roster.items()):
    ax_map = axes[0, i]
    ax_barcode = axes[1, i]

    city.plot_city(ax=ax_map, doors=False, address=False)

    traj = agent.sparse_traj
    plot_pings(traj, ax=ax_map, s=15, point_color='red',
               x='x', y='y', timestamp='timestamp')

    plot_time_barcode(traj['timestamp'], ax=ax_barcode, set_xlim=True)

    q = len(traj) / len(agent.trajectory)
    ax_map.set_title(f"Agent {i}: {len(traj)} obs (q={q:.2f})\n"
                     f"beta_start={sampling_params[i]['beta_start']}, "
                     f"beta_dur={sampling_params[i]['beta_durations']}")
    ax_map.set_axis_off()

plt.tight_layout()
plt.savefig('data/trajectories_visualization.png', dpi=150, bbox_inches='tight')
plt.show()

Part 2: Parallel Generation at Scale

Generate trajectories for 15 users using parallelization.

def generate_agent_trajectory(args):
    """Worker function for parallel generation."""
    identifier, home, work, seed = args
    city = City.from_geopackage('garden-city.gpkg')
    city._build_hub_network(hub_size=16)
    city.compute_gravity(exponent=2.0)
    city.compute_shortest_paths(callable_only=True)
    agent = Agent(identifier=identifier, city=city, home=home, workplace=work)

    agent.generate_trajectory(
        datetime=pd.Timestamp("2024-01-01T07:00-04:00"),
        end_time=pd.Timestamp("2024-01-08T07:00-04:00"),
        seed=seed
    )
    agent.sample_trajectory(
        beta_ping=5,
        replace_sparse_traj=True,
        seed=seed
    )
    sparse_df = agent.sparse_traj.copy()
    sparse_df['user_id'] = identifier
    sparse_df['home'] = home
    sparse_df['workplace'] = work
    return sparse_df

n_agents = 15
rng = np.random.default_rng(100)
homes = city.buildings_gdf[city.buildings_gdf['building_type'] == 'home']['id'].to_numpy()
workplaces = city.buildings_gdf[city.buildings_gdf['building_type'] == 'workplace']['id'].to_numpy()

agent_params = [
    (f'agent_{i:04d}',
     rng.choice(homes),
     rng.choice(workplaces),
     i)
    for i in range(n_agents)
]

print(f"Generating {n_agents} agents in parallel...")
start_time = time.time()

results = Parallel(n_jobs=-1, verbose=10)(
    delayed(generate_agent_trajectory)(params) for params in agent_params
)

generation_time = time.time() - start_time
print(f"Generated {n_agents} agents in {generation_time:.2f}s ({generation_time/n_agents:.2f}s per agent)")

Generating 15 agents in parallel...

[Parallel(n_jobs=-1)]: Using backend LokyBackend with 8 concurrent workers.
[Parallel(n_jobs=-1)]: Done   2 out of  15 | elapsed:   18.3s remaining:  2.0min
[Parallel(n_jobs=-1)]: Done   4 out of  15 | elapsed:   23.3s remaining:  1.1min
[Parallel(n_jobs=-1)]: Done   6 out of  15 | elapsed:   24.6s remaining:   36.9s
[Parallel(n_jobs=-1)]: Done   8 out of  15 | elapsed:   24.9s remaining:   21.8s
[Parallel(n_jobs=-1)]: Done  10 out of  15 | elapsed:   27.0s remaining:   13.5s
[Parallel(n_jobs=-1)]: Done  12 out of  15 | elapsed:   29.2s remaining:    7.2s

Generated 15 agents in 30.52s (2.03s per agent)

[Parallel(n_jobs=-1)]: Done  15 out of  15 | elapsed:   30.4s finished

parallel_population = Population(city)
for df, params in zip(results, agent_params):
    identifier, home, work, seed = params
    agent = Agent(identifier=identifier, city=city, home=home, workplace=work, seed=seed)
    agent.sparse_traj = df.drop(columns=['home', 'workplace'])
    parallel_population.add_agent(agent, verbose=False)

output_path = 'data/trajectories_15_users'
parallel_population.save_pop(
    sparse_path=str(output_path),
    fmt='parquet'
)
print(f"Saved sparse trajectories to {output_path}")

Saved sparse trajectories to data/trajectories_15_users
